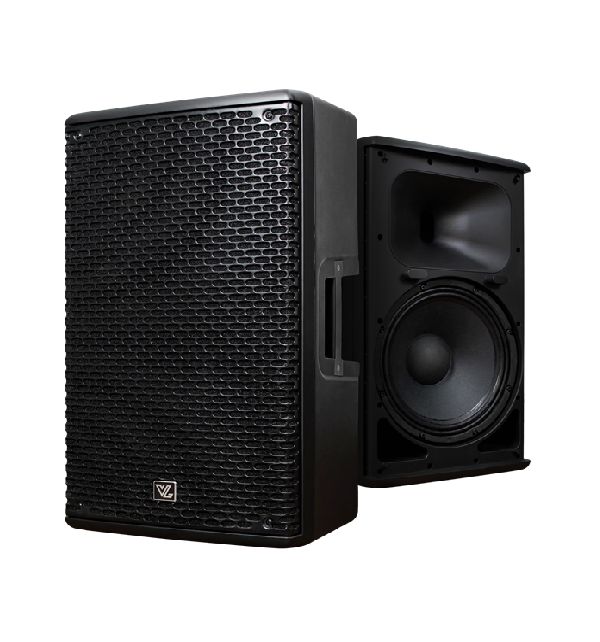

VIVA-712D ACTIVE TWO-WAY SPEAKER

คำอธิบาย

SPECIFICATIONS

• ——– SPECIFICATIONS ——–
• Frequency Response

  56Hz – 20kHz
• Max SPL @1m

  135dB
• Horizontal Coverage

  90°
• Vertical Coverage Angle

  60°
• ——– TRANSDUCER ——–
• Compression Driver

  1” Throat, 1.5” Voice Coil
• Woofer

  12”, 3”Voice Coil
• ——– INPUT/OUTPUT SECTION ——–
• Input Signal

  Balance/Unbalance
• Input Connectors

  XLR, TRS, TS
• Output Connectors

  XLR
• Input Sensitivity

  -2dBu/+4dBu
• ——– PROCESSOR SECTION ——–
• Mic. Input Sensitivity

  -32dBu
• Crossover Frequency

  1,800Hz
• Protections

  Thermal, RMS
• Limiter

  Soft Limiter
• Controls

  Volume, Boost, Mic/Line
• ——– POWER SECTION ——–
• Total Power

  1,400W Peak, 700W RMS
• High Frequency

  200W Peak, 100W RMS
• Low Frequency

  1,200W Peak, 600W RMS
• Cooling

  Convection
• Connections

  VDE
• ——– STANDARD COMPLIANCE ——–
• CE Marking

  Yes
• ——– PHYSICAL SPECIFICATIONS ——–
• Cabinet/Case Material

  PP Composite
• Hardware

  3 x M10
• Handles

  1 Top, 2 Side
• Pole Mount/Cap

  Yes
• Grille

  Steel
• Color

  Black
• ——– SIZE ——–
• Height

  628mm
• Width

  340mm
• Depth

  340mm
• Weight

  17.77kg
